Curved & Painted Guardrail
Custom-radius guardrail panels and color-coated solutions for bridge approaches, complex highway geometries, and aesthetic applications. Fabricated to your exact specifications.
.webp)

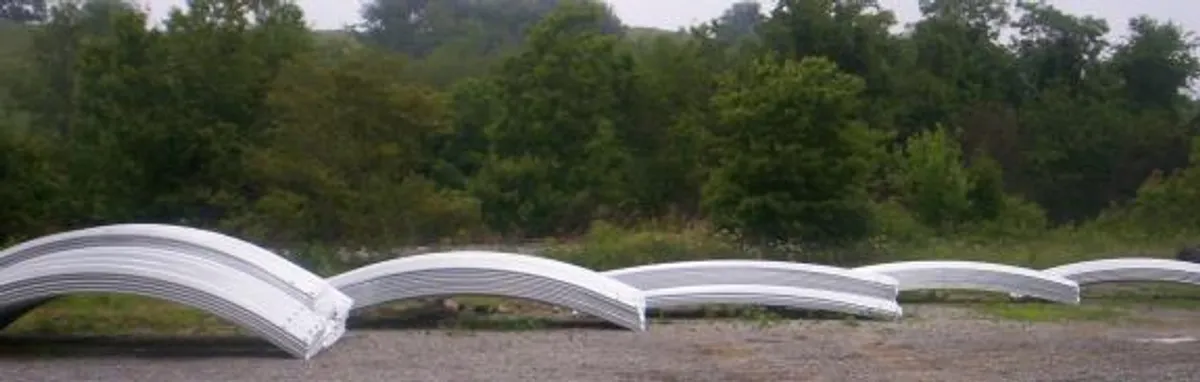

Class A, Type II W-Beam Radius Guardrail
SPIG Industry fabricates Class A, Type II W-Beam radius guardrail in 12’6″ and 6’3″ lengths, with radii ranging from 5’ to 85’. Every panel maintains standard hole patterns for full compatibility with existing W-Beam hardware and posts.
- Available radii: 5’, 10’, 15’, 20’, 25’, 30’, 35’, 40’, 45’, 50’, and 85’
- Available in 12’6″ and 6’3″ panel lengths
- Class A, Type II W-Beam standard for highway applications
- Standard W-Beam hole patterns maintained for hardware compatibility
- Powder coat and hot-dip galvanized coating options available
- Fabricated at our 40,000 sq. ft. Bristol, VA facility

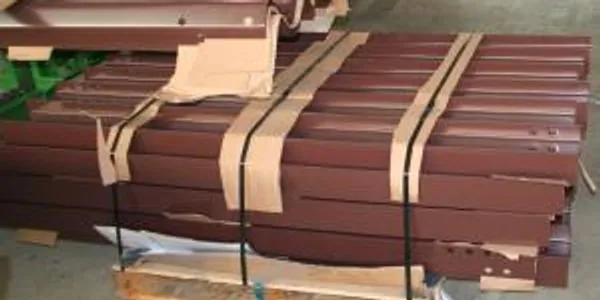

Custom Powder Coating — Any Color, Any Product
Virtually any product in our inventory can be powder coated to your specifications. SPIG Industry offers custom color powder coating with an approximately one-week production turnaround at competitive pricing, so your project stays on schedule without compromising on appearance.
- Virtually any product in inventory can be powder coated
- Custom colors to your exact specifications
- Approximately one-week production turnaround
- Competitive pricing on all powder coat orders
.webp)
Radius Guardrail Specification Summary
| Specification | Value |
|---|---|
| Product Type | Class A, Type II W-Beam Radius |
| Available Lengths | 12’6″ and 6’3″ |
| Available Radii | 5’, 10’, 15’, 20’, 25’, 30’, 35’, 40’, 45’, 50’, 85’ |
| Coating Options | Hot-dip galvanized, powder coat (custom colors) |
| Powder Coat Turnaround | Approximately 1 week |
| Hole Pattern | Standard W-Beam compatible |
| Fabrication Location | Bristol, Virginia (40,000 sq ft facility) |
Where Curved & Painted Guardrail Is Used
Bridge Approaches
Curved guardrail panels that transition smoothly into bridge rail systems, maintaining structural continuity and aesthetic consistency for DOT bridge projects.
Urban Streetscaping
Painted guardrail in custom colors to complement urban design standards, downtown corridors, and areas where visual appearance is part of the project specification.
Complex Curves & Ramps
Highway interchange ramps, roundabouts, and tight-radius sections where standard straight panels cannot conform to the required roadway geometry.
How to Order Custom Guardrail
Three straightforward steps from your project specs to delivery on your job site.
Submit Your Specifications
Provide your project plans, required bend radii, lengths, gauge requirements, and any coating or color specifications. The more detail, the faster we can quote.
Engineering Review & Quote
Our team reviews your specifications, confirms fabrication feasibility, and provides a detailed quote including lead time and delivery to your project location.
Fabrication & Delivery
We fabricate your custom panels at our 40,000 sq. ft. Bristol, VA facility and deliver directly to your job site, ready to install.
